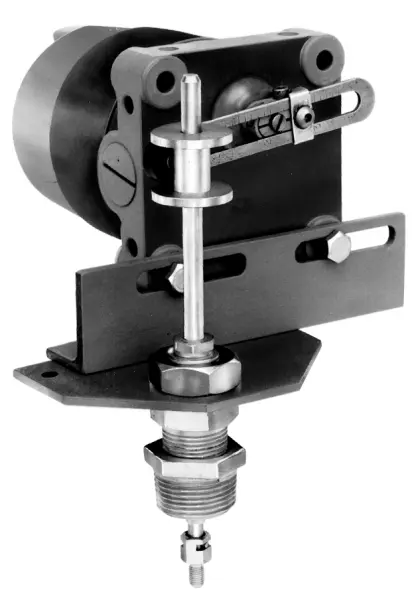

X117C Valve Position Transmitter


The Cla-Val Pacific Model X117C Valve Position Transmitter is an accurate monitor of valve position. Through an industry standard 4-20 mA output, the X117C delivers the level of accuracy required for computer-guided control valve systems (SCADA type). The electronic components are enclosed in a rugged, sealed aluminum housing. The assembly is mounted externally on the cover of the Cla-Val main valve. An extension of the valve stem projects outside of the cover at the center boss and is  mechanically linked to the electronic components. As the valve stem rises and lowers, the X117C provides an output signal in direct proportion to valve position. The X117C is available with optional switches for additional signal functions as Model X117CLS.

  • Accurately Monitors Valve Position
  • Weather-Sealed and Explosion-Proof
  • Used on 131 Series Electronic Control Valves
  • Easy Field Adjustments
  • Compact and Rugged Construction
