• CF1-C1

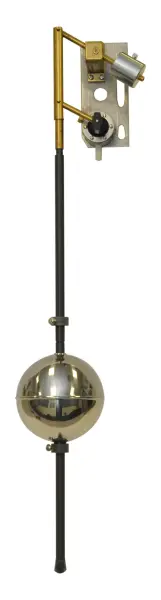

Float Control for Open Tanks


The Cla-Val Model CF1-C1 Float Control is a float-actuated, multi-port pilot control which provides non-modulating, two-position, on-off operation. It is used primarily to operate remotely located Cla-Val valves requiring three-way or four-way pilot valve operation. Designed for used in open tanks, this control operates on a minimum level change of approximately one inch. Maximum level change is nineteen inches. This level adjustment can be located up to 111⁄2 feet from the control by adding float rod extensions.

Advantages include:
  • Accurate Liquid Level Control
  • Fully Hydraulic Operation
  • Simple Design, Easy Maintenance
  • No Lubrication Necessary
  • No Gears, No Mechanical Linkage Between Valve and Control
