90-23 & 690-23 Pressure Reducing Valve with Low Flow Bypass

(90-23 & 690-23)

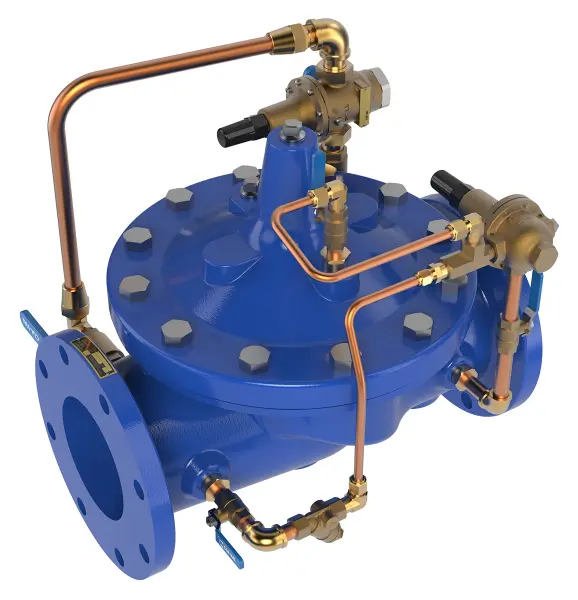

The Cla-Val Pacific Model 90-23 Pressure Reducing Valve with Low Flow By-Pass automatically reduces a higher inlet pressure to a steady lower downstream pressure, regardless of changing flow rate. The low flow by-pass capability is achieved by using a second pilot, the Cla-Val Pacific CRD-L Pressure Reducing Control as an integral part of the main valve. By doing this, space is saved and installation and maintenance become much easier.

Engineeing
Data Sheets

90-23 Engineering Data Sheet (full port)
- 100-01 Main Valve Engineering Data Sheet - US Units (full port)
- 100-01 Main Valve Engineering Data Sheet - Metric Units (full port)
690-23 Engineering Data Sheet (reduced port)
- 100-20 Main Valve Engineering Data Sheet - US Units (reduced port)
- 100-20 Main Valve Engineering Data Sheet - Metric Units (reduced port)
