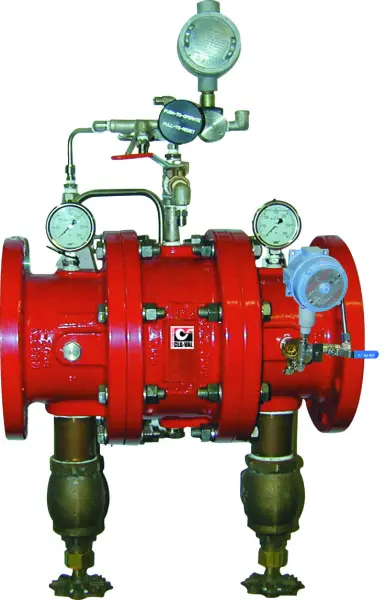

834-60 Tubular Diaphragm Seawater Deluge Valve - FM Approved

(834-60)

The FM Approved Model 834-60 Tubular Diaphragm Seawater Deluge Valve is a pressure operated, in-line axial valve. A tube diaphragm actuates the valve, which is comprised of three major components: 1) Tube 2) Barrier and 3) Body. There is only one moving part in the valve - the tube diaphragm. There are no shafts, packing, stem guides or springs.

Advantages include:
  • Low Head Loss
  • Cast Steel Construction
  • Stainless Steel Pilot and Tubing
  • Stainless Steel Solenoid
  • Anti-Cavitation Design
  • Fusion Coated Epoxy Inside and Out
  • Nickel Aluminum Bronze Construction Option (Alloy C95800)
  • Duplex Stainless Steel Construction Option (Alloy 2205)
  • Low Maintenance
  • Simple and Reliable Operation
