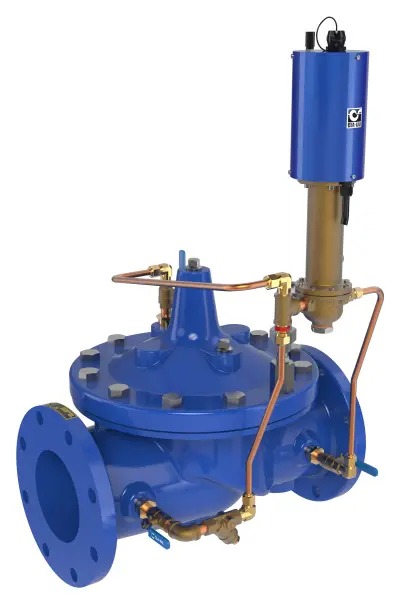

390-02 & 3690-02 Electronic Actuated Pressure Reducing Valve
(390-02 & 3690-02)
Cla-Val Models 390-02 and 3690-02 Electronic Actuated Pressure Reducing Control Valves combine precise control of field proven Cla-Val hydraulic pilots and simple, remote valve control. Models 390-02 and 3690-02 Pressure Reducing Valves automatically reduce a higher inlet pressure to a steady lower downstream pressure regardless of changing flow rate and/or varying inlet pressure.
These valves are accurate, pilot-operated regulators capable of holding downstream pressure to a pre-determined limit. The valves uses a CRD-34 pilot control, consisting of a hydraulic pilot and integral controller, that accepts a remote set-point command input and makes set-point adjustments to the pilot.
The valves are designed to be used with supervisory control systems (SCADA), having remote analog set-point output and process variable upstream pressure input using the VC-22D Electronic Valve Controller as the interface. Cla-Val 390 Series Valves are an effective solution for lowering costs associated with "confined space" requirements by eliminating the need for entry in valve structure for set-point adjustment. They are also ideal for pressure management, and can be programmed to minimum night time and optimum daytime pressures.
Engineering
Data Sheets
Technical
Manual
Product
Animations
and Videos
390-02 Engineering Data Sheet
(full port)
100-01 Main Valve Engineering Data Sheet -
US Units (full port)
100-01 Main Valve Engineering Data Sheet -
Metric (full port)
Chinese Engineering Data Sheet -
CE-390-02
3690-02 Engineering Data Sheet
(reduced port)
100-20 Main Valve Engineering Data Sheet -
US Units (reduced port)
