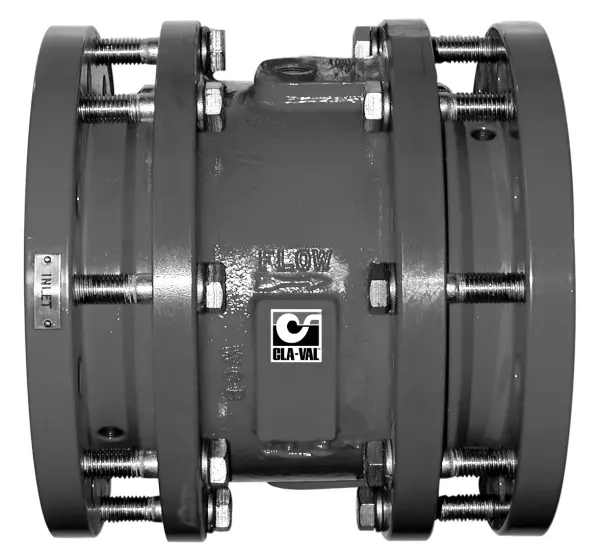

100-43 800 Series Tubular Diaphragm Valve

(100-43)
The Cla-Val Pacific 100-43 Tubular Diaphragm is  a pressure-operated, in-line axial valve.  A tube diaphragm actuates the valve, which is comprised of three major components:
  1. Tube
  2. Barrier
  3. Body Three
There is only one moving part in the valve - the tube diaphragm.  There are no shafts, packing, stem guides or springs, making this valve exceptionally reliable and easy to maintain.
